TORQtec®

EJOT/毅结特/TORQtec®

本店价:

市场价:
会员购买享有折扣

会员价格

会员等级 会员价格
注册用户
已售出 0 件|0 人评价

规格参数

产品名称 : TORQtec®
产品品牌 : EJOT

产品介绍

  • Overview

    • Individual integration into customer projects
    • High degree of efficiency due to press polished thread surface
    • Very high efficiency in the production of the parts
    • High resistance to wear due to cold-hardened thread flanks

CAD & more on ejot.com

With the one-time registration we provide in this area CAD data in various formats as well as PDFs of the technical drawings of our products DELTA PT®, SHEETtracs® and ALtracs® Plus.
Additionally, CAD & more offers you the possibility to design your individual joints with the aid of prognosis programs or to check their feasibility by APPLICATION CHECKs. Furthermore, you can download the latest product brochures, technical publications and the EJOT company standards.


CAD & more

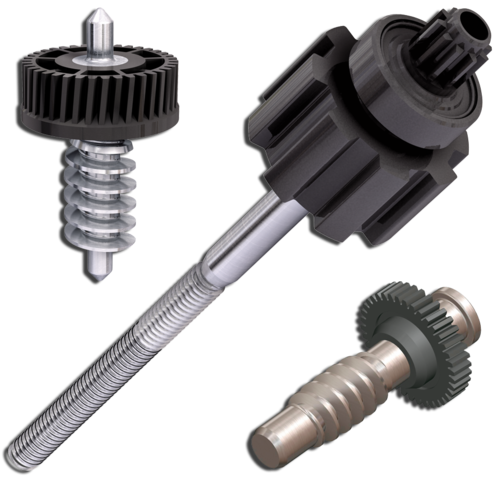

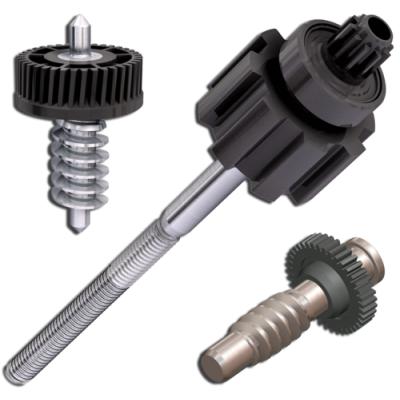

TORQtec® Motion converter

TORQtec® are EJOT systems, which convert one motion into another. This can be the conversion of one rotary motion into a rotation turned by 90°. Applications can be found in worm gears or spindle-nut-systems. The field of application for the TORQtec® motion converter is versatile. For example in exterior mirror and head rest adjustment systems for cars or spindle adjustments for gas appliances. Versions of the TORQtec® motion converter:

Motion Threads

The advantage of the TORQtec ® System is the cold-formed threaded spindle. The EJOT motion or trapezoidal threads, with a flank angle of less than 30° and a thread flank with very low surface roughness depth, contribute to the lightness of the counterpart.

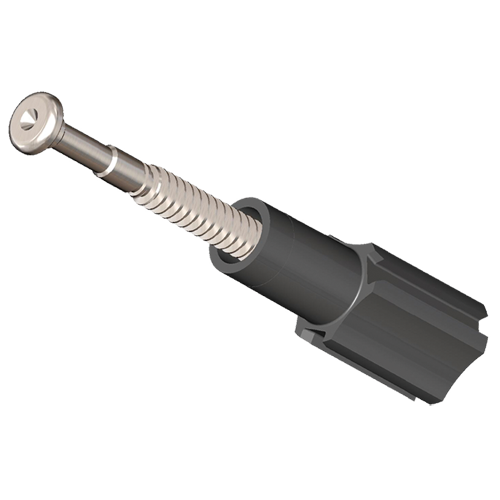

Spindle-nut-system

Completely cold-formed thread spindles, combined with accurately fitting nuts, preferably made of plastic, with very tight fitting thread pairs characterise these spindle-nut-systems.

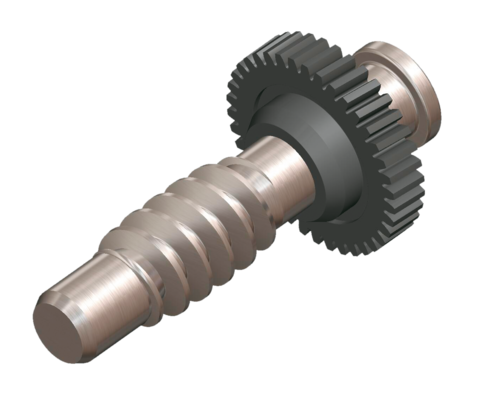

Worm gears

The described cold-forming technology is the basis for worm gear shafts. The thread flanks with very low surface roughness depth, ensure the high degree of efficiency of this system. Cold-forming technology combined with injection moulded gear elements from a single supplier.
